The multi-step process enhances the user experience by dividing the registration process into smaller, more manageable steps. This reduces confusion and frustration for the user, as clear and concise guidance is provided throughout the process.

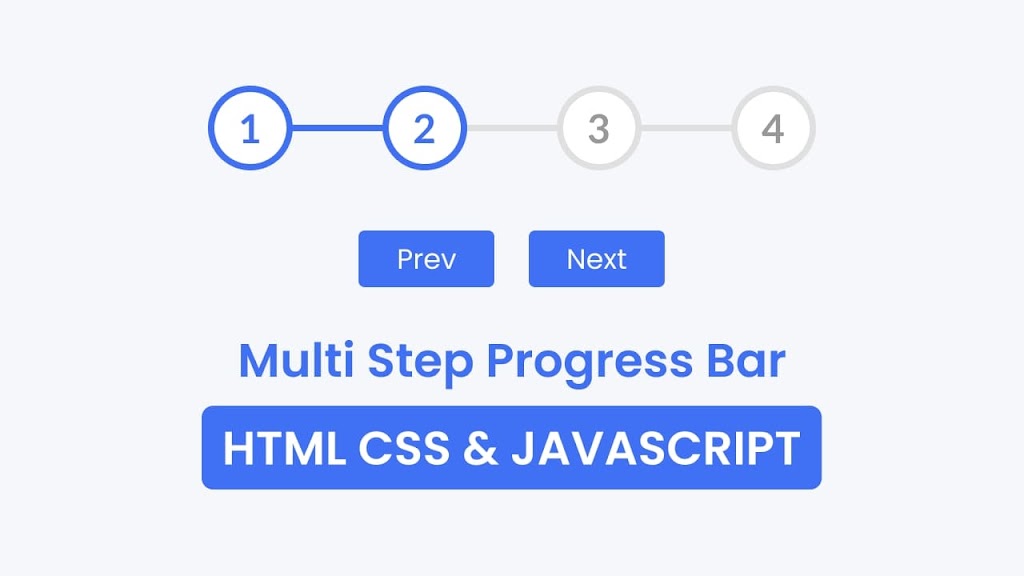

In this blog, you will learn how to create a Multi-Step Progress Bar using HTML CSS & JavaScript. As you can see in the image there will be a total of four steps and two buttons to control that multistep progress bar. Additionally, recently I thought to create Neumorphism Loading Animation, you may like that as well.
By the end of this blog post, you will have a Multi-Step Progress Bar. And, you can implement it in various sections like Registration or signup form.
Video Tutorial of Multi-Step Progress Bar
Steps to create Multi Step Progress Bar in HTML CSS & JS
1. File Structure
2. Creating the Multi-Step Progress Bar
In the second step, we will create the layout and style the progress bar & buttons using HTML and CSS. In your index.html file, add the following HTML code to create the basic structure of the multi-step progress bar.
<!DOCTYPE html>
<!-- Coding By CodingNepal | codingnepalweb.com -->
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta http-equiv="X-UA-Compatible" content="IE=edge" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>Multi Step Progress</title>
<link rel="stylesheet" href="style.css" />
<!--<script src="script.js" defer></script>-->
</head>
<body>
<div class="container">
<div class="steps">
<span class="circle active">1</span>
<span class="circle">2</span>
<span class="circle">3</span>
<span class="circle">4</span>
<div class="progress-bar">
<span class="indicator"></span>
</div>
</div>
<div class="buttons">
<button id="prev" disabled>Prev</button>
<button id="next">Next</button>
</div>
</div>
</body>
</html>
In your style.css file, add the following CSS code to style the multi-step progress bar. If you want, you can change the font, size, color, and background of the progress bar & buttons by slightly modifying this code.
/* Import Google font - Poppins */
@import url("https://fonts.googleapis.com/css2?family=Poppins:wght@200;300;400;500;600;700&display=swap");
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: "Poppins", sans-serif;
}
body {
height: 100vh;
display: flex;
align-items: center;
justify-content: center;
background: #f6f7fb;
}
.container {
display: flex;
flex-direction: column;
align-items: center;
gap: 40px;
max-width: 400px;
width: 100%;
}
.container .steps {
display: flex;
width: 100%;
align-items: center;
justify-content: space-between;
position: relative;
}
.steps .circle {
display: flex;
align-items: center;
justify-content: center;
height: 50px;
width: 50px;
color: #999;
font-size: 22px;
font-weight: 500;
border-radius: 50%;
background: #fff;
border: 4px solid #e0e0e0;
transition: all 200ms ease;
transition-delay: 0s;
}
.steps .circle.active {
transition-delay: 100ms;
border-color: #4070f4;
color: #4070f4;
}
.steps .progress-bar {
position: absolute;
height: 4px;
width: 100%;
background: #e0e0e0;
z-index: -1;
}
.progress-bar .indicator {
position: absolute;
height: 100%;
width: 0%;
background: #4070f4;
transition: all 300ms ease;
}
.container .buttons {
display: flex;
gap: 20px;
}
.buttons button {
padding: 8px 25px;
background: #4070f4;
border: none;
border-radius: 8px;
color: #fff;
font-size: 16px;
font-weight: 400;
cursor: pointer;
box-shadow: 0 5px 10px rgba(0, 0, 0, 0.05);
transition: all 200ms linear;
}
.buttons button:active {
transform: scale(0.97);
}
.buttons button:disabled {
background: #87a5f8;
cursor: not-allowed;
}
Finally, add the following JavaScript code to your script.js file to add functionality for creating a multi-step progress bar.
//DOM Elements
const circles = document.querySelectorAll(".circle"),
progressBar = document.querySelector(".indicator"),
buttons = document.querySelectorAll("button");
let currentStep = 1;
// function that updates the current step and updates the DOM
const updateSteps = (e) => {
// update current step based on the button clicked
currentStep = e.target.id === "next" ? ++currentStep : --currentStep;
// loop through all circles and add/remove "active" class based on their index and current step
circles.forEach((circle, index) => {
circle.classList[`${index < currentStep ? "add" : "remove"}`]("active");
});
// update progress bar width based on current step
progressBar.style.width = `${((currentStep - 1) / (circles.length - 1)) * 100}%`;
// check if current step is last step or first step and disable corresponding buttons
if (currentStep === circles.length) {
buttons[1].disabled = true;
} else if (currentStep === 1) {
buttons[0].disabled = true;
} else {
buttons.forEach((button) => (button.disabled = false));
}
};
// add click event listeners to all buttons
buttons.forEach((button) => {
button.addEventListener("click", updateSteps);
});
Conclusion and Final Words
By following the steps in this blog post, you have successfully created a Multi-Step Progress Bar using HTML, CSS, and JavaScript. Now it’s up to you to experiment with the code and make it more useful.
