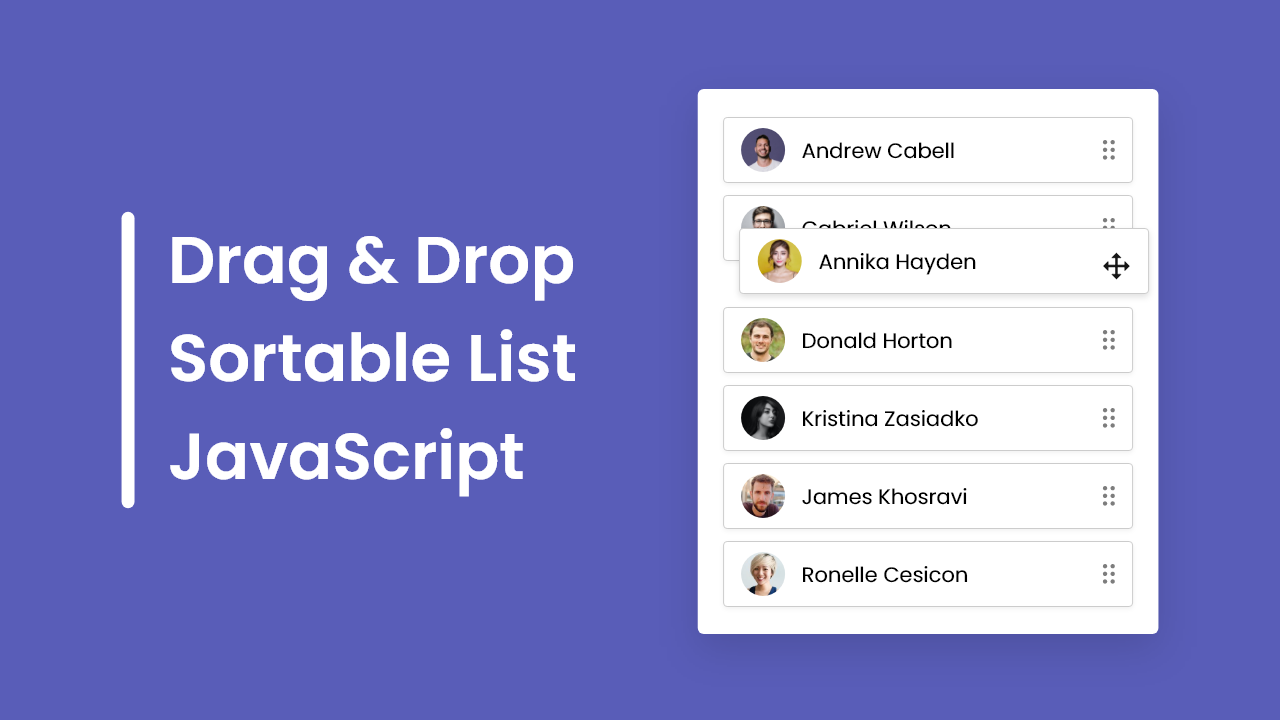

Drag and drop sortable lists are a widely used UI element allowing users to reorder items by dragging and dropping them on a desired position. This functionality can be found in many web applications, like task managers and e-commerce websites.
In this blog post, you’ll learn how to create Drag and Drop Sortable Lists using HTML, CSS, and JavaScript. Remember, we’ll not use any external JavaScript library to create this sortable list, so you’ll get a deeper understanding of DOM manipulation, event handling, array manipulation, and more.
If you’re excited to see a demo of a sortable list in action, click here to check it out. For a full video tutorial on creating a drag-and-drop sortable list using HTML, CSS, and JavaScript, you can watch the given YouTube video.
Video Tutorial of Drag and Drop Sortable List JavaScript
If you prefer visual learning, then the video tutorial is a great resource for you. Each line of code is explained in detail with comments to help you understand what’s happening at each step.
However, if you prefer reading blog posts or want a quick summary of the steps involved in creating a sortable list, you can continue reading the post. By the end of this post, you will have a good understanding of how to create a drag and drop sortable list using HTML, CSS, and JavaScript.
Steps For Creating Drag & Drop Sortable List JavaScript
To create a drag and drop sortable list using HTML, CSS, and JavaScript, follow the given steps line by line:
- Create a folder. You can name this folder whatever you want, and inside this folder, create the mentioned files.
- Create an
index.htmlfile. The file name must be index and its extension .html - Create a
style.cssfile. The file name must be style and its extension .css - Create a
script.jsfile. The file name must be script and its extension .js - Download the images folder from Google Drive and put this folder inside the project folder.
To start, add the following HTML codes to your index.html file to create the draggable, sortable list items: I’ve added six list items, but you can add as many as you want.
<!DOCTYPE html>
<!-- Coding By CodingNepal - youtube.com/codingnepal -->
<html lang="en" dir="ltr">
<head>
<meta charset="utf-8">
<title>Drag and Drop Sortable List | CodingNepal</title>
<link rel="stylesheet" href="style.css">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<link rel="stylesheet" href="https://unicons.iconscout.com/release/v4.0.0/css/line.css">
<script src="script.js" defer></script>
</head>
<body>
<ul class="sortable-list">
<li class="item" draggable="true">
<div class="details">
<img src="images/img-1.jpg">
<span>Kristina Zasiadko</span>
</div>
<i class="uil uil-draggabledots"></i>
</li>
<li class="item" draggable="true">
<div class="details">
<img src="images/img-2.jpg">
<span>Gabriel Wilson</span>
</div>
<i class="uil uil-draggabledots"></i>
</li>
<li class="item" draggable="true">
<div class="details">
<img src="images/img-3.jpg">
<span>Ronelle Cesicon</span>
</div>
<i class="uil uil-draggabledots"></i>
</li>
<li class="item" draggable="true">
<div class="details">
<img src="images/img-4.jpg">
<span>James Khosravi</span>
</div>
<i class="uil uil-draggabledots"></i>
</li>
<li class="item" draggable="true">
<div class="details">
<img src="images/img-5.jpg">
<span>Annika Hayden</span>
</div>
<i class="uil uil-draggabledots"></i>
</li>
<li class="item" draggable="true">
<div class="details">
<img src="images/img-6.jpg">
<span>Donald Horton</span>
</div>
<i class="uil uil-draggabledots"></i>
</li>
</ul>
</body>
</html>
Next, add the following CSS codes to your style.css file to style the list items and make it easier to use. If you wish, feel free to customize it to your liking by changing the color, font, size, and other properties in the file.
/* Import Google font - Poppins */
@import url('https://fonts.googleapis.com/css2?family=Poppins:wght@400;500;600&display=swap');
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: 'Poppins', sans-serif;
}
body {
display: flex;
align-items: center;
justify-content: center;
min-height: 100vh;
background: #595DB8;
}
.sortable-list {
width: 425px;
padding: 25px;
background: #fff;
border-radius: 7px;
padding: 30px 25px 20px;
box-shadow: 0 15px 30px rgba(0, 0, 0, 0.1);
}
.sortable-list .item {
list-style: none;
display: flex;
cursor: move;
background: #fff;
align-items: center;
border-radius: 5px;
padding: 10px 13px;
margin-bottom: 11px;
/* box-shadow: 0 2px 4px rgba(0,0,0,0.06); */
border: 1px solid #ccc;
justify-content: space-between;
}
.item .details {
display: flex;
align-items: center;
}
.item .details img {
height: 43px;
width: 43px;
pointer-events: none;
margin-right: 12px;
object-fit: cover;
border-radius: 50%;
}
.item .details span {
font-size: 1.13rem;
}
.item i {
color: #474747;
font-size: 1.13rem;
}
.item.dragging {
opacity: 0.6;
}
.item.dragging :where(.details, i) {
opacity: 0;
}
Finally, add the following JavaScript code to your script.js file to add drag and drop functionality to the sortable list: To understand the code more deeply, you can watch the above YouTube video tutorial or read the comments within the code and experiment with it.
const sortableList = document.querySelector(".sortable-list");
const items = sortableList.querySelectorAll(".item");
items.forEach(item => {
item.addEventListener("dragstart", () => {
// Adding dragging class to item after a delay
setTimeout(() => item.classList.add("dragging"), 0);
});
// Removing dragging class from item on dragend event
item.addEventListener("dragend", () => item.classList.remove("dragging"));
});
const initSortableList = (e) => {
e.preventDefault();
const draggingItem = document.querySelector(".dragging");
// Getting all items except currently dragging and making array of them
let siblings = [...sortableList.querySelectorAll(".item:not(.dragging)")];
// Finding the sibling after which the dragging item should be placed
let nextSibling = siblings.find(sibling => {
return e.clientY <= sibling.offsetTop + sibling.offsetHeight / 2;
});
// Inserting the dragging item before the found sibling
sortableList.insertBefore(draggingItem, nextSibling);
}
sortableList.addEventListener("dragover", initSortableList);
sortableList.addEventListener("dragenter", e => e.preventDefault());
It’s important to note that the script code for creating the drag and drop sortable list will only work on devices with a mouse. If you want to enable touch functionality, you’ll need to add touch event listeners as well.
If you’re not familiar with touch event listeners and want to learn more about how to use them, you can check out this blog post on creating a draggable image slider using touch event listeners in JavaScript. It will help you understand how to add dragging functionality to touch devices.
Conclusion and Final Words
By following the steps in this blog post, you have successfully created Drag and Drop Sortable List using HTML, CSS, and JavaScript. Now it’s up to you to modify the code to suit your needs and make it more touch-friendly.
If you encounter any problems or your code is not working as expected, you can download the source code files of this project for free. Click on the download button to get the zip file containing the project folder with source code files.
